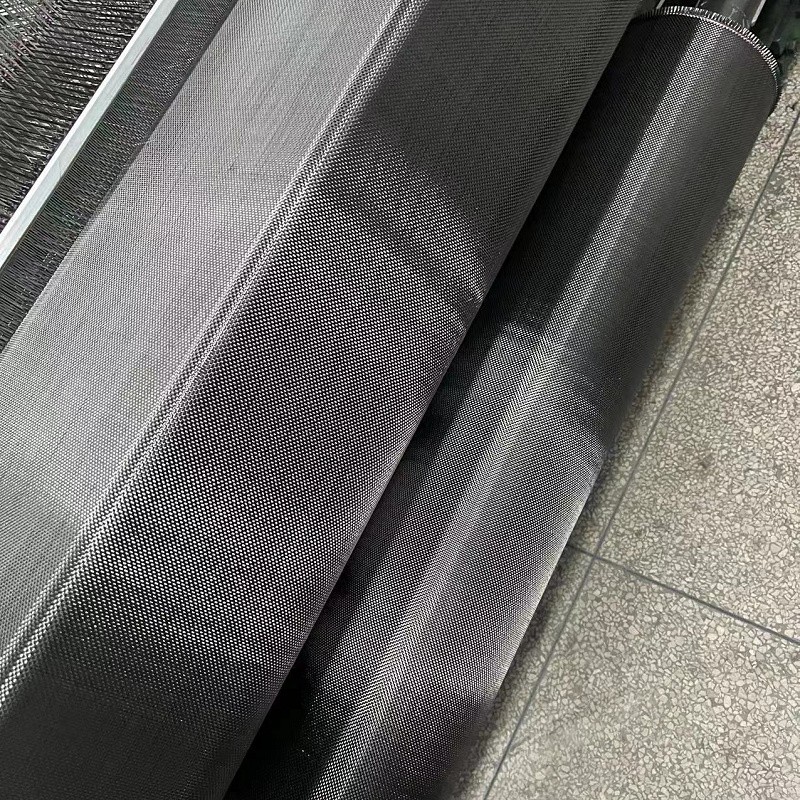

Plain Weave Carbon Fiber ntau

Dab tsi yog qhov yooj yim weave carbon fiber ntaub? Dab tsi yog cov yam ntxwv thiab kev siv ntawm nws?

Cov yam ntxwv ntawm cov pa roj carbon fiber ntau yog cov xov paj warp thiab weft yarns interwoven nyob rau hauv ib tug qauv ntawm ib tug nce thiab ib tug down, uas yog, warp thiab weft yarns yog interlaced txhua lwm yam xov paj, yog li ntawd muaj ntau interweaving cov ntsiab lus. Cov ntaub yog ruaj, hnav-resistant, tawv, thiab tiaj tus, tab sis muaj tsawg elasticity thiab nruab nrab luster. Cov ntaub qhwv fiber ntau ntawm cov ntaub ntawv carbon fiber no tas li nyob rau hauv lub xeev hloov pauv, nrog cov ntsiab lus fiber ntau khoov thiab ntau dua elongation thaum lub sij hawm ncab. Nyob rau tib lub sijhawm, vim yog zawv zawg ntawm fiber ntau pob, qhov muag qhov tshwm sim ntawm cov ntsiab lus sib cuam tshuam ntawm cov xov paj uas nyob ib sab thiab cov xov paj weft. Vim muaj qhov sib txawv ntawm qhov sib txawv ntawm cov khoom siv fiber ntau hauv cov lus qhia warp thiab weft, cov ntaub fiber ntau yooj yim tuaj yeem soj ntsuam cov kab sib chaws zoo li cov tsos, zoo ib yam li chessboard ntawm chess.

1. Plain weave: tsim los ntawm interweaving lub warp thiab weft kab ntawm ob sab, nrog rau qhov tseem ceeb tshaj plaws feature yog hais tias cov warp thiab weft kab muaj feem ntau interwoven nodes. Lub zog dabtsi yog khoov ntawm cov pa roj carbon fiber ntau cov khoom siv qis dua me ntsis, thaum lub zog tensile siab dua me ntsis, thiab qhov sib npaug qis dua me ntsis. Qhov kev xav tag nrho tsis yog peb-dimensional li kab pheeb ces kaum. Los ntawm kev tshawb fawb, nws tau pom tias hauv qab 10 txheej ntawm cov ntaub, cov resin permeability nyob rau hauv tiaj thiab twill carbon fiber kav yuav luag zoo tib yam, thiab tag nrho lub zog kuj yuav luag tib yam.

2. Twill weave: Cov yam ntxwv ntawm twill weave yog cov kab diagonal uas tsim los ntawm cov ntsiab lus ntawm cov xov paj los yog cov ntsiab lus weft, yog li cov nodes tsis tshua pom zoo rau cov weave tiaj, tab sis cov permeability ntawm resin yog qhov zoo dua li ntawm cov ntaub qhwv. Lub zog tensile ntawm kab pheeb ces kaum carbon fiber kav yog qis dua li ntawm cov pa roj carbon fiber ntau cov kav dej, nrog lub zog ntau dua dabtsi yog khoov tus nqi thiab qhov zoo li peb-dimensional. Feem ntau, cov kab diagonal siv ntau dua.

Dab tsi yog qhov sib txawv ntawm cov ntaub qhwv ntsej muag thiab twill weave?

Plain weave yog ib qho qauv tsim los ntawm interweaving warp thiab weft kab ib los ntawm ib tug, uas ua rau ntau interweaving cov ntsiab lus ntawm warp thiab weft kab; Thiab kab pheeb ces kaum yog ib qho qauv weaving nrog ob ntu, uas txo cov naj npawb ntawm cov ntsiab lus sib cuam tshuam ntawm warp thiab weft kab, tab sis tsim cov kab pheeb ces kaum.

Vim muaj qhov sib txawv ntawm cov ntsiab lus sib txawv, cov weave tiaj tiaj muaj ntau dua dabtsi yog khoov lub zog thiab tensile lub zog piv rau twill weave, uas ua rau muaj kev sib npaug zoo dua. Qhov no tsis tau txhais hais tias twill weaving tsis muaj txiaj ntsig. Ua ntej, twill weaving muaj lub zog peb-dimensional kev nkag siab thiab siab zoo nkauj tus nqi; Qhov thib ob, lub zog shear ntawm kab pheeb ces kaum yog siab dua li ntawm cov kab txaij dawb vim tias muaj cov ntsiab lus interlacing tsawg dua thiab permeability ntawm kab pheeb ces kaum siab dua.

Kev txwv

Cov khoom no tsis raug cais raws li cov khoom txaus ntshai rau kev thauj mus los thiab tuaj yeem xa mus rau txhua qhov chaw yam tsis muaj kev txwv.

Pob Loj

Tsis muaj kev txwv pob loj lossis nyiaj ntxiv rau cov khoom no.
